3D Measurement of Large Details with Absolute Accuracy Using Hexagon Technology In modern industries, quality control is not just a requirement but a crucial factor for survival. For large components such as automobile chassis, machine structures, aerospace equipment, or rotating shafts in manufacturing, achieving micron-level precision is a challenge—but also an opportunity for businesses to demonstrate their production excellence.
HPT Vietnam provides 3D measurement services for large details using technology from Hexagon, a global leader in 3D measurement technology. This service delivers a comprehensive solution through three key technologies: Absolute Arm, Scanner, and Laser Tracker.
Integrated Solution – Accurate, Fast, and Flexible
🔹 Absolute Arm – Flexible in Tight Spaces A portable measuring arm with 6 or 7 axes and high precision. Ideal for measuring local inspection points, assembly positions, or small surfaces on large components. Features thermal sensors and automatic calibration, ensuring stable accuracy.
🔹 Scanner AS1 / RS5 / RS6 – Full 3D Surface Reproduction Captures 3D scans of component surfaces at ultra-fast speeds, creating a visual error map (color map). Easily detects geometric defects, warping, and deformations without contact.

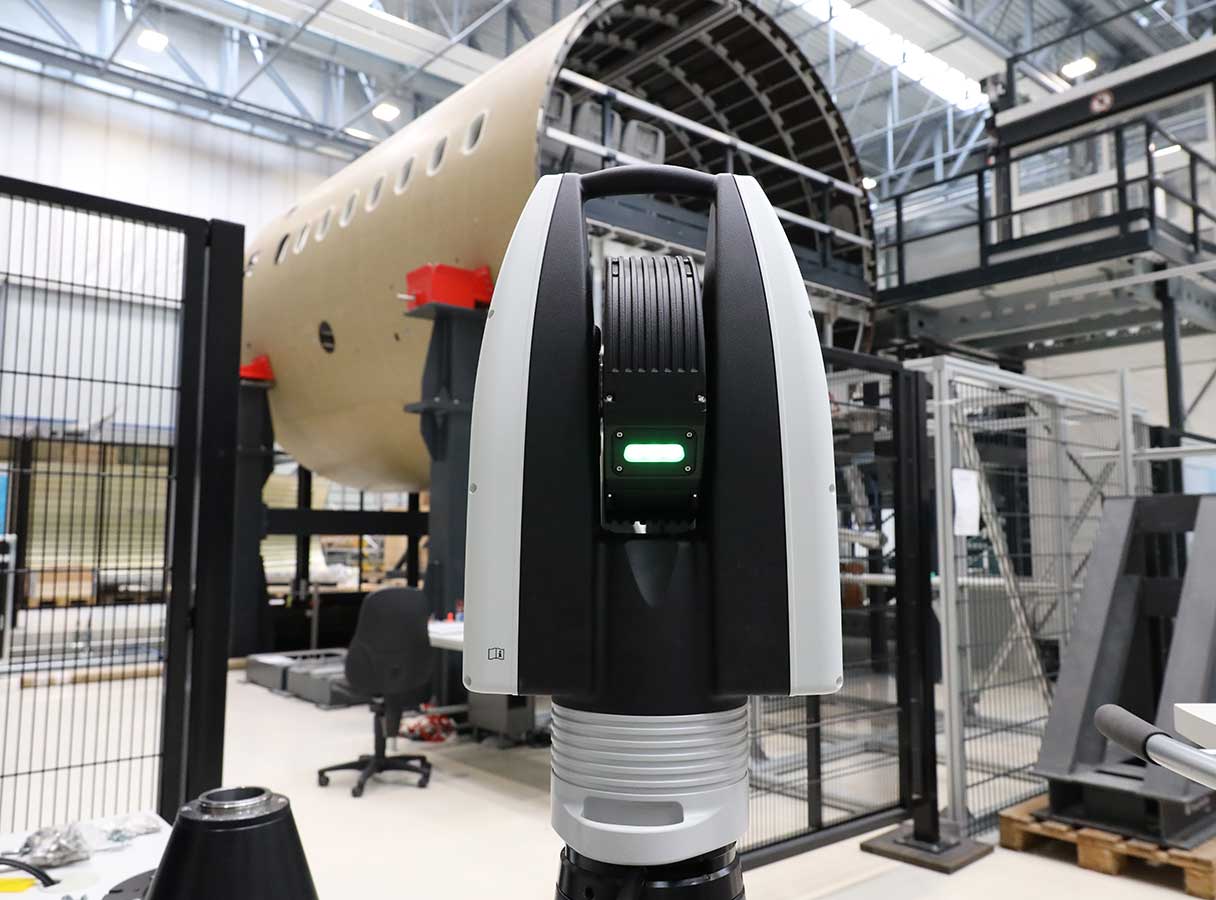

🔹 Laser Tracker – Power for Huge Components Offers accuracy under 0.01 mm with a measurement range of up to 80 meters. Tracks motion and measures 3D coordinates of any point on a large component. Ideal for jig alignment, assembly measurement, and geometric error monitoring in wide spaces.
Outstanding Benefits for Manufacturers
✅ Reduces measurement time from hours to minutes
✅ Early error detection – minimizing scrap and repair costs
✅ Creates clear 3D error maps – supporting process improvement
✅ Easily integrates into smart production lines – ready for Industry 4.0
Practical Applications
🚗 Automotive: Measures chassis, welding jigs, and body panels.
✈️ Aerospace: Aligns aircraft frames, checks engine assembly.
⚡ Energy: Measures turbine blades, rotor shafts, and generator housings.
🔧 Large Molds: Measures errors and deformations post-machining or heat treatment.
HPT Vietnam is the official distributor of Hexagon measurement technology in Vietnam. With extensive experience in 3D measurement solutions for FDI corporations and local enterprises, we offer not just equipment but end-to-end support, including consulting, training, maintenance, and technology applications in production.
Contact us for a live demonstration at your factory!
